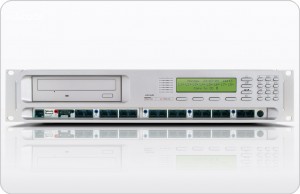

productsOcto_lightboxRecorded telephone calls are used to retrieve agreements that were made, to improve safety issues or to account for one’s actions. The Call Recorders Quarto and Octo for respectively 4 and 8 analog telephone lines are perfectly suited for these purposes. Designed and optimised for recording from analog sources, they are the choice when you need to record from analog telephone lines, analog radio communication equipment or any other analog audio signal.

The Call Recorders Octo and Quarto automatically record all telephone and radio traffic. Not only is the entire conversation recorded, but also important data such as the external telephone number, the exact date, time and duration of the call. Up to 41.000 hours of telephone calls can be retrieved and listened to using either the recorder’s keyboard or the network. The optional built-in CD recorder automatically creates back-ups of all recordings on CD, which can be played back on any PC.

The two available models are:
010.01750 The Call Recorder Quarto 19 Inch 41.000 hours (4 recording channels)
010.01760 The Call Recorder Octo 19 Inch 41.000 hours (8 recording channels)

Seperate channel setup
Every channel on the unit can be setup separately. The Call Recorder Octo / Quarto is the ideal device for combined source recording solutions. One could for instance record 2 telephone lines, 1 transceiver + a microphone with a single Quarto 4-channel. Conference mode A special new feature for these units is the “conference” recording mode. This feature enables the units to be used in 2 or 3 way conference mode on the PBX connected to analog extensions and then record everything that comes in on these lines. Another possibility of this feature the possibility to use the Call Recorders as a multichannel answering machine.

productsCryptoCard_lightboxSecuring recordings
CryptoCards, the Call Recorder Octo /Quarto is equipped with an IC Card reader. Using the CryptoCard, available as an option, the recordings can be encrypted. Without a corresponding CryptoCard and pin code the encrypted recordings cannot be played back. This is not only a professional way to protect the calls, but is especially useful to protect the privacy of the people involved.


Optional Software

Call Recorder Access System
The Call Recorder Access System (CRAS) is a solution to manage massive recording databases. Direct playback on the PC from remote recorders is possible. It features graphical analyses of call data.

Araña web interface
AranaCallDatabaseUse Araña to access the recordings of the call recorder via a web interface. You can view a list of recordings, download them, and send them by e-mail. With Araña, you can also make a full back up of the recordings. Araña can run on a server and provides an interface in the form of web pages. The multi-user version allows access to the call recorder by multiple users at once, via web browsers on their PCs.


Options

• Optional CD drive
• Optional Encryption (CryptoCards)
• Optional Call Recorder Access Software
• Optional Araña web interface

Specifications Octo

Product: Call Recorder Octo
Article Number: 010.01760
Call Recording: 8 analog telephone lines or other mono audio sources
Caller ID detection: via DTMF or FSK is available
Housing: 19 inch
Buttons: Numeric keypad and function keys
Storage: 41.000 hours
Internal speaker: available

Power supply: internal open frame 65 watt
Power supply input: input 100-240VAC 2A max
Power supply output: output of 5V @ 4A + 12V @ 3.75A.

Connections
Ethernet: 10/100-BASE-T with RJ-45 UTP connector
Telephone line: eight RJ-45 connectors for POTS and eight RJ-45 connectors for telephones
General purpose audio inputs: 3.5mm mini stereo jack inputs (4 jack inputs for 8 channels)
Loudspeaker output: mono output 0.1 Watt/16 Ohm using a 3.5mm output jack

Dimensions (L x W x H): 45 x 30 x 9 cm
Weight: 5.5 kg
Temperature Range: 0 – 40 °C
Humidity Range: 10 – 90 %, non-condensing

EMC: EN 55022:2011, EN 55024:2010


Specifications Quarto

Product: Call Recorder Quarto
Article Number: 010.01750
Call Recording: 4 analog telephone lines or other mono audio sources
Caller ID detection: via DTMF or FSK is available
Housing: 19 inch
Buttons: Numeric keypad and function keys
Storage: 41.000 hours
Internal speaker: available

Power supply: internal open frame 65 watt
Power supply input: input 100-240VAC 2A max
Power supply output: output of 5V @ 4A + 12V @ 3.75A.

Connections
Ethernet: 10/100-BASE-T with RJ-45 UTP connector
Telephone line: four RJ-45 connectors for POTS and four RJ-45 connectors for telephones
General purpose audio inputs: 3.5mm mini stereo jack inputs (2 jack inputs for 4 channels)
Loudspeaker output: mono output 0.1 Watt/16 Ohm using a 3.5mm output jack

Dimensions (L x W x H): 45 x 30 x 9 cm
Weight: 5.5 kg
Temperature Range: 0 – 40 °C
Humidity Range: 10 – 90 %, non-condensing

EMC: EN 55022:2011, EN 55024:2010
